SAINT-GOBAIN 圣戈班

半导体Rulon tape



特点

1.  具有优异的耐化学以及耐

2.  优异的自润滑性能



应用:

1. 半导体Wirbonding抗磨胶带

2. 机床耐磨助滑导条

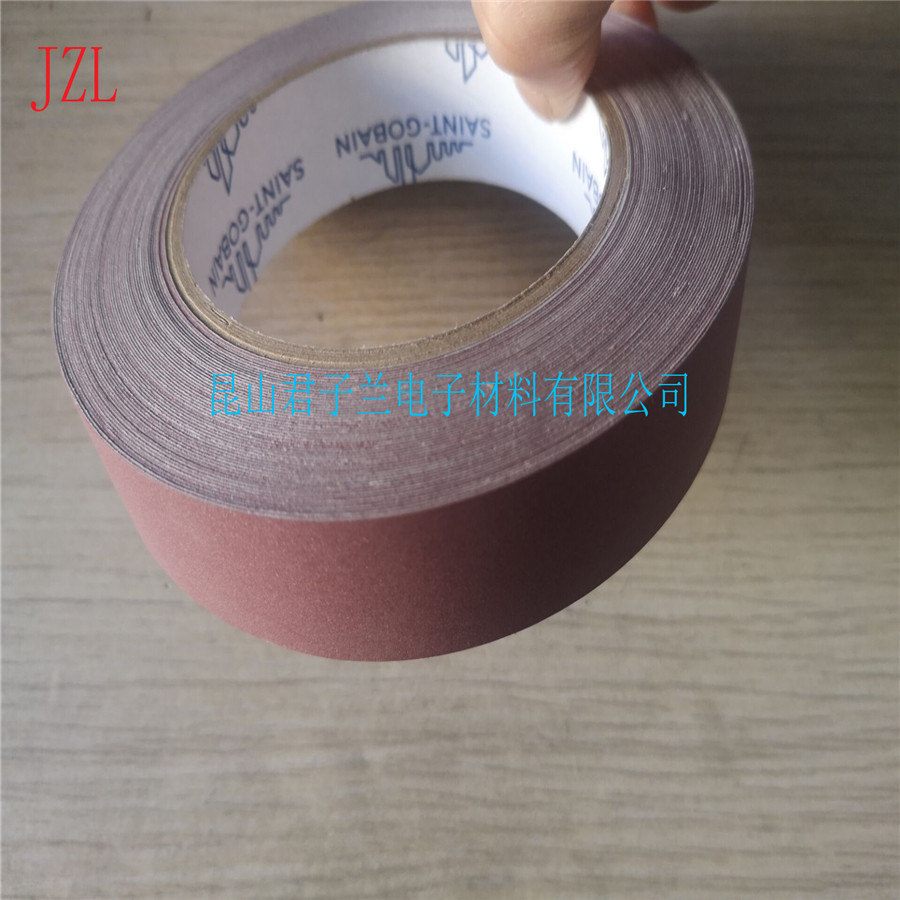

CHR® RU/R101

Film-Rulon®
CHR® RU and RU101 are manufactured from skived, patented, filled
PTFE film coated one side with high-temperature pressure-sensitive
adhesive.
Typical Properties
Product Number RU  RU101
Backing Material Film-Rulon Film-Rulon
Adhesive Type Silicone Acrylic
Total Thickness (mm) 0.254       0.262
Backing Thickness (mm) 0.203   0.203
Adhesive Thickness (mm) 0.051  0.058
Adhesion to Steel (N/cm) 2.7      2.2
Tensile Strength (N/cm) 35         35
Elongation (% at break) 225       225
Operating Temperature (°C) -73 to +260  -29 to +177
Colour Rose Rose
Applications—RU and RU101 combine a low coefficient of friction with the
high temperature stability. They also offer outstanding abrasion resistance,
which equates to a 500-fold increase in wear resistance over PTFE in
rotating bearing tests.
Features/Benefits—Rulon® backing is chemically inert and offers excellent
high temperature resistance. RU and RU101 tape construction is stable,
non-toxic and weather resistant. The film surface is self-lubricating and the
backing is conformable. Both tapes are supplied with a peel off release
liner.
Availability—Factory stock for RU and RU101 is in master log form 16.5m
x 432mm. Rolls can be slit 12.7mm wide to 432mm wide. Both are
available with a liner
